NOS Plate Wet Nitrous System, GM 05163NOS

NOS Plate Wet Nitrous System, GM 05163NOS
NOS Plate Wet Nitrous System, GM 05163NOS
$1,037.99 ea
NEWARRIVING SOONEstimated Ship Date 12/10/2024 (If Ordered Today)
Model: 4012758
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

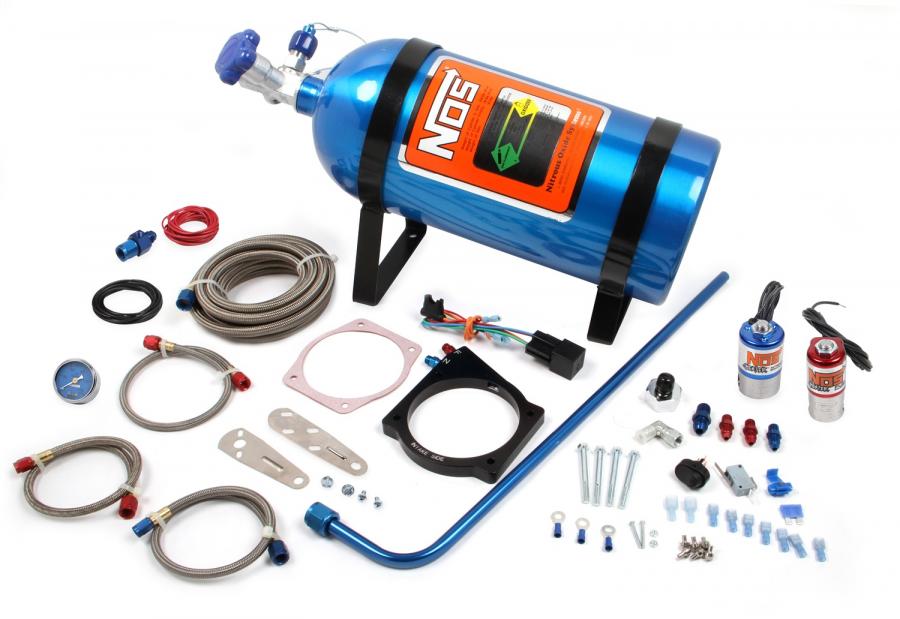

If you are running one of the many LS based engines and would like to add up to 250 additional horsepower, NOS has a complete nitrous kit option for you. These kits are ideal for adding a little more power to that stock engine or a lot more power to that custom built Hot Rod. Available for 4-bolt, drive-by-wire or cable operated throttle bodies in 90mm, 92mm, 102mm & 105mm plate sizes. These are "Wet" plates, meaning the additional fuel is added though the nitrous system, so there are no requirements for an injector upgrade*. *It is important to ensure the existing fuel delivery system is adequate to support the expected power levels.
Features:
  • Fits 90mm or 92mm cable actuated throttle body
  • For use with drive-by-wire or cable operated Throttle Bodies
  • Single ½” plate between the throttle body and manifold
  • Ideal for use with the Holley Hi-Ram & MSD Atomic LS Manifold
  • Supports up to 250 RWHP (Rear Wheel Horse Power)
  • Plate outlet design maximizes distribution
  • Includes a 10 lb. “NOS Blue” nitrous bottle with brackets
  • 6061 Billet Aluminum, CNC Machined Plate
Retains stock throttle body location and orientation using a 1/2" billet aluminum plate. Power levels up to 250 RWHP do not require injector upgrade, however, the total fuel supply system must be sized according to expected power levels. Recommend 1 step colder spark plug up to 150 RWHP, 2 steps colder spark plug on 200 and up RW
Installation Notes:
Retains stock throttle body location and orientation using a 1/2" billet aluminum plate. Power levels up to 250 RWHP do not require injector upgrade, however, the total fuel supply system must be sized according to expected power levels. Recommend 1 step colder spark plug up to 150 RWHP, 2 steps colder spark plug on 200 and up RW

Downloads:

Download Name File Size
199r10298.pdf88.63KB
199r11242.pdf1.69MB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Engine
Chevrolet Corvette 427 Limited Edition Z06 2008 7.0L / 427 / V8
Chevrolet Corvette Base 2005 6.0L / 364 / V8
Chevrolet Corvette Base 2006 6.0L / 364 / V8
Chevrolet Corvette Base 2007 6.0L / 364 / V8
Chevrolet Corvette Base 2008 6.2L / 376 / V8
Chevrolet Corvette Base 2009 6.2L / 376 / V8
Chevrolet Corvette Base 2010 6.2L / 376 / V8
Chevrolet Corvette Base 2011 6.2L / 376 / V8
Chevrolet Corvette Base 2012 6.2L / 376 / V8
Chevrolet Corvette Grand Sport 2010 6.2L / 376 / V8
Chevrolet Corvette Grand Sport 2011 6.2L / 376 / V8
Chevrolet Corvette Grand Sport 2012 6.2L / 376 / V8
Chevrolet Corvette Z06 Carbon 2011 7.0L / 427 / V8
Chevrolet Corvette Z06 2006 7.0L / 427 / V8
Chevrolet Corvette Z06 2007 7.0L / 427 / V8
Chevrolet Corvette Z06 2008 7.0L / 427 / V8
Chevrolet Corvette Z06 2009 7.0L / 427 / V8
Chevrolet Corvette Z06 2010 7.0L / 427 / V8
Chevrolet Corvette Z06 2011 7.0L / 427 / V8
Chevrolet Corvette Z06 2012 7.0L / 427 / V8
Chevrolet Corvette ZR1 2009 6.2L / 376 / V8
Chevrolet Corvette ZR1 2010 6.2L / 376 / V8
Chevrolet Corvette ZR1 2011 6.2L / 376 / V8
Chevrolet Corvette ZR1 2012 6.2L / 376 / V8

Specifications:

Adjustable Yes
Bottle Color Blue
Bottle Included Yes
Bottle Material 6061 T-6 Aluminum
Bottle Size 10 lb
Bottle Valve Super Hi-Flo
Bracket Material Steel
Brackets Included Yes
Color Blue
Delivery Style EFI Spacer Plate
Emission Code 4
Feed Line Size 6AN
Fuel Solenoid Cheater ll

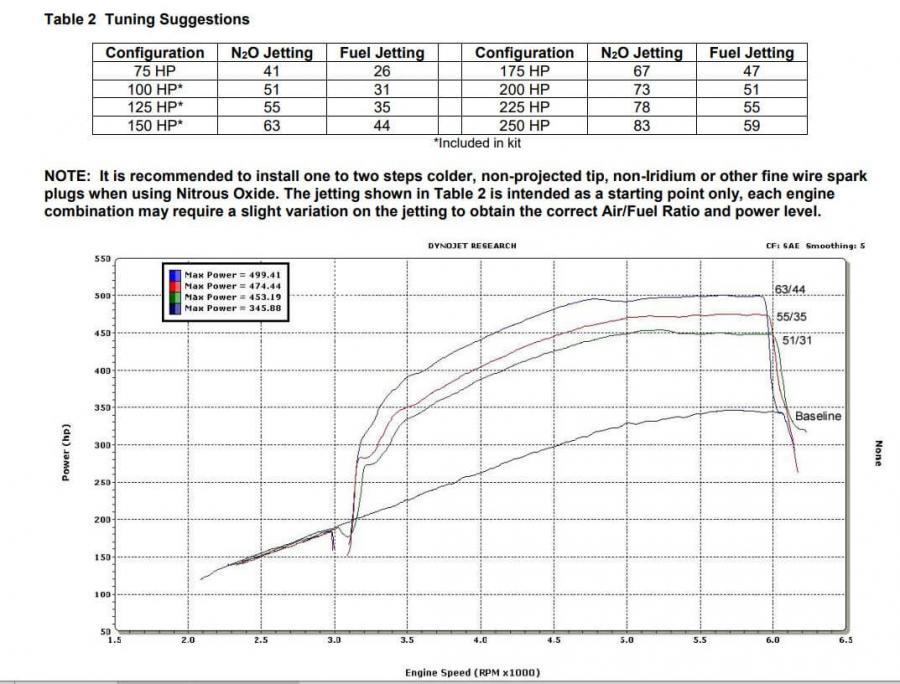

Included Jetting Horsepower 100, 125, 150
Jet Sizes Included 100, 125, 150 hp
Jet Style Flare
Material 6061-T6 Aluminum
Max Horsepower 250
Nitrous Bottle Capacity 10 lbs
Nitrous Solenoid Cheater
Number of Solenoids 2
Part Type Nitrous Oxide Injection System Kit
Plate Bolt Pattern 4 bolt
Plate Diameter 90 mm
Plate Flange GM 90mm LS 4 bolt
Plate Height 1/2 inch
Plate Included Yes
Plate Thickness 1/2 inch
Product Type Nitrous System
Proposition 65 www.P65Warnings.ca.gov
Solenoid Top Cover Color Blue/Red
Style Wet
System Style Wet
