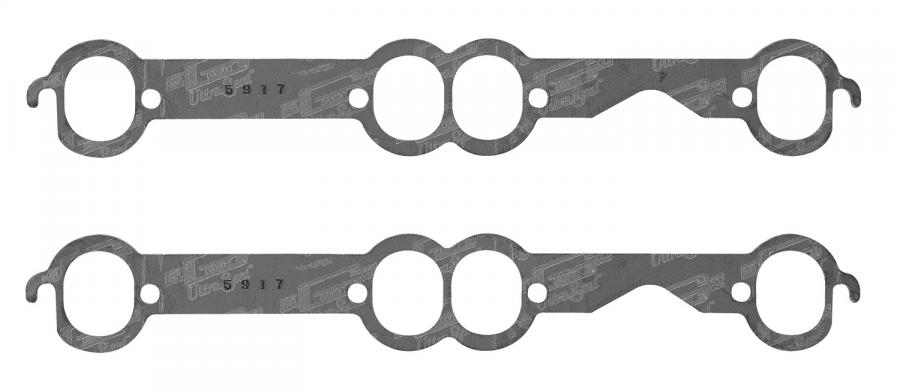

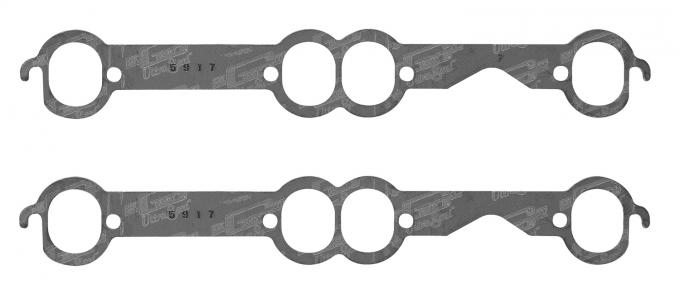

Mr. Gasket Ultra-Seal Header Gaskets 5917

Mr. Gasket Ultra-Seal Header Gaskets 5917
$39.99 ea
NEWARRIVING SOONEstimated Ship Date 12/10/2024 (If Ordered Today)
Model: 4011861
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]
Manufactured from high-temperature steel core/graphite faced exhaust material. Expanded steel core provides stability and maximum torque retention to eliminate gasket failure. Graphite facing provides excellent heat resistance and thermal conductivity to transfer heat away from the cylinder head. Conforms to and seals minor surface irregularities. High recovery material allows header or manifold flange to stay sealed if flange loses clamp-load. Can be trimmed if necessary for modified port applications. For original equipment replacement, high performance street, drag race and oval track use.
Features:
  • Manufactured from high-temperature steel core/graphite faced exhaust material
  • Expanded steel core provides stability and maximum torque retention to eliminate gasket failure
  • Graphite impregnated facing provides excellent heat resistance and thermal conductivity to transfer heat away from the cylinder head
  • Conforms to and seals minor surface irregularities
  • Can be trimmed if necessary for modified port applications
  • For OE replacement, high performance street, drag race and oval track use

Videos:

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years Engine Fitment Notes
Chevrolet Corvette 1955 4.3L / 265 / V8 ULTRA SEAL; EXHAUST GASKET SET; LATE BLACKJACK/CYCLONE/FLOWTECH OVAL PORT HEADERS; PORT DIMENSIONS W-1.50 IN. X H-1.82 IN.;
Chevrolet Corvette 1957 4.6L / 283 / V8 ULTRA SEAL; EXHAUST GASKET SET; LATE BLACKJACK/CYCLONE/FLOWTECH OVAL PORT HEADERS; PORT DIMENSIONS W-1.50 IN. X H-1.82 IN.;
Chevrolet Corvette 1958 4.6L / 283 / V8 ULTRA SEAL; EXHAUST GASKET SET; LATE BLACKJACK/CYCLONE/FLOWTECH OVAL PORT HEADERS; PORT DIMENSIONS W-1.50 IN. X H-1.82 IN.;
Chevrolet Corvette 1959 4.6L / 283 / V8 ULTRA SEAL; EXHAUST GASKET SET; LATE BLACKJACK/CYCLONE/FLOWTECH OVAL PORT HEADERS; PORT DIMENSIONS W-1.50 IN. X H-1.82 IN.;
Chevrolet Corvette 1960 4.6L / 283 / V8 ULTRA SEAL; EXHAUST GASKET SET; LATE BLACKJACK/CYCLONE/FLOWTECH OVAL PORT HEADERS; PORT DIMENSIONS W-1.50 IN. X H-1.82 IN.;
Chevrolet Corvette 1961 4.6L / 283 / V8 ULTRA SEAL; EXHAUST GASKET SET; LATE BLACKJACK/CYCLONE/FLOWTECH OVAL PORT HEADERS; PORT DIMENSIONS W-1.50 IN. X H-1.82 IN.;
Chevrolet Corvette 1962 5.3L / 327 / V8 ULTRA SEAL; EXHAUST GASKET SET; LATE BLACKJACK/CYCLONE/FLOWTECH OVAL PORT HEADERS; PORT DIMENSIONS W-1.50 IN. X H-1.82 IN.;
Chevrolet Corvette 1969 5.7L / 350 / V8 ULTRA SEAL; EXHAUST GASKET SET; LATE BLACKJACK/CYCLONE/FLOWTECH OVAL PORT HEADERS; PORT DIMENSIONS W-1.50 IN. X H-1.82 IN.;
Chevrolet Corvette 1970 5.7L / 350 / V8 ULTRA SEAL; EXHAUST GASKET SET; LATE BLACKJACK/CYCLONE/FLOWTECH OVAL PORT HEADERS; PORT DIMENSIONS W-1.50 IN. X H-1.82 IN.;
Chevrolet Corvette 1971 5.7L / 350 / V8 ULTRA SEAL; EXHAUST GASKET SET; LATE BLACKJACK/CYCLONE/FLOWTECH OVAL PORT HEADERS; PORT DIMENSIONS W-1.50 IN. X H-1.82 IN.;
Chevrolet Corvette 1972 5.7L / 350 / V8 ULTRA SEAL; EXHAUST GASKET SET; LATE BLACKJACK/CYCLONE/FLOWTECH OVAL PORT HEADERS; PORT DIMENSIONS W-1.50 IN. X H-1.82 IN.;
Chevrolet Corvette 1974 5.7L / 350 / V8 ULTRA SEAL; EXHAUST GASKET SET; LATE BLACKJACK/CYCLONE/FLOWTECH OVAL PORT HEADERS; PORT DIMENSIONS W-1.50 IN. X H-1.82 IN.;
Chevrolet Corvette 1975 5.7L / 350 / V8 ULTRA SEAL; EXHAUST GASKET SET; LATE BLACKJACK/CYCLONE/FLOWTECH OVAL PORT HEADERS; PORT DIMENSIONS W-1.50 IN. X H-1.82 IN.;
Chevrolet Corvette 1976 5.7L / 350 / V8 ULTRA SEAL; EXHAUST GASKET SET; LATE BLACKJACK/CYCLONE/FLOWTECH OVAL PORT HEADERS; PORT DIMENSIONS W-1.50 IN. X H-1.82 IN.;
Chevrolet Corvette 1977 5.7L / 350 / V8 ULTRA SEAL; EXHAUST GASKET SET; LATE BLACKJACK/CYCLONE/FLOWTECH OVAL PORT HEADERS; PORT DIMENSIONS W-1.50 IN. X H-1.82 IN.;
Chevrolet Corvette 1978 5.7L / 350 / V8 ULTRA SEAL; EXHAUST GASKET SET; LATE BLACKJACK/CYCLONE/FLOWTECH OVAL PORT HEADERS; PORT DIMENSIONS W-1.50 IN. X H-1.82 IN.;
Chevrolet Corvette 1979 5.7L / 350 / V8 ULTRA SEAL; EXHAUST GASKET SET; LATE BLACKJACK/CYCLONE/FLOWTECH OVAL PORT HEADERS; PORT DIMENSIONS W-1.50 IN. X H-1.82 IN.;
Chevrolet Corvette 1980 5.0L / 305 / V8
5.7L / 350 / V8		 ULTRA SEAL; EXHAUST GASKET SET; LATE BLACKJACK/CYCLONE/FLOWTECH OVAL PORT HEADERS; PORT DIMENSIONS W-1.50 IN. X H-1.82 IN.;
Chevrolet Corvette 1981 5.7L / 350 / V8 ULTRA SEAL; EXHAUST GASKET SET; LATE BLACKJACK/CYCLONE/FLOWTECH OVAL PORT HEADERS; PORT DIMENSIONS W-1.50 IN. X H-1.82 IN.;
Chevrolet Corvette 1982 5.7L / 350 / V8 ULTRA SEAL; EXHAUST GASKET SET; LATE BLACKJACK/CYCLONE/FLOWTECH OVAL PORT HEADERS; PORT DIMENSIONS W-1.50 IN. X H-1.82 IN.;
Chevrolet Corvette 1984 5.7L / 350 / V8 ULTRA SEAL; EXHAUST GASKET SET; LATE BLACKJACK/CYCLONE/FLOWTECH OVAL PORT HEADERS; PORT DIMENSIONS W-1.50 IN. X H-1.82 IN.;
Chevrolet Corvette 1985 5.7L / 350 / V8 ULTRA SEAL; EXHAUST GASKET SET; LATE BLACKJACK/CYCLONE/FLOWTECH OVAL PORT HEADERS; PORT DIMENSIONS W-1.50 IN. X H-1.82 IN.;
Chevrolet Corvette 1986 5.7L / 350 / V8 ULTRA SEAL; EXHAUST GASKET SET; LATE BLACKJACK/CYCLONE/FLOWTECH OVAL PORT HEADERS; PORT DIMENSIONS W-1.50 IN. X H-1.82 IN.;
Chevrolet Corvette 1987 5.7L / 350 / V8 ULTRA SEAL; EXHAUST GASKET SET; LATE BLACKJACK/CYCLONE/FLOWTECH OVAL PORT HEADERS; PORT DIMENSIONS W-1.50 IN. X H-1.82 IN.;
Chevrolet Corvette 1988 5.7L / 350 / V8 ULTRA SEAL; EXHAUST GASKET SET; LATE BLACKJACK/CYCLONE/FLOWTECH OVAL PORT HEADERS; PORT DIMENSIONS W-1.50 IN. X H-1.82 IN.;
Chevrolet Corvette 1989 5.7L / 350 / V8 ULTRA SEAL; EXHAUST GASKET SET; LATE BLACKJACK/CYCLONE/FLOWTECH OVAL PORT HEADERS; PORT DIMENSIONS W-1.50 IN. X H-1.82 IN.;
Chevrolet Corvette 1990 5.7L / 350 / V8 ULTRA SEAL; EXHAUST GASKET SET; LATE BLACKJACK/CYCLONE/FLOWTECH OVAL PORT HEADERS; PORT DIMENSIONS W-1.50 IN. X H-1.82 IN.;
Chevrolet Corvette 1991 5.7L / 350 / V8 ULTRA SEAL; EXHAUST GASKET SET; LATE BLACKJACK/CYCLONE/FLOWTECH OVAL PORT HEADERS; PORT DIMENSIONS W-1.50 IN. X H-1.82 IN.;

Specifications:

Collector Gaskets Included No
Emission Code 5
Engine Chevrolet Small Block Gen I
Gasket Line Ultra-Seal
Material Ultra-seal
Part Type Exhaust Manifold Gasket Set
Port Shape Oval
Port Size 1.50" x 1.82"
Product Type Header Gaskets
Proposition 65 www.P65Warnings.ca.gov
Thickness .062"
Warranty Limited 90 Day Warranty TX, Limited 90 Day Warranty
Weight 0.3000
