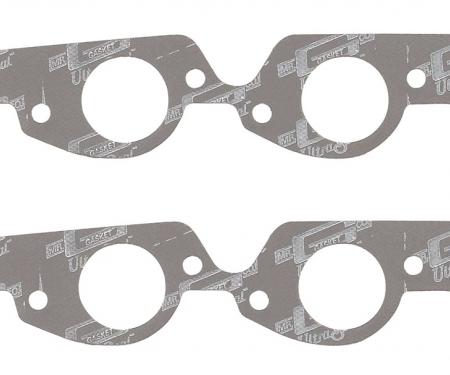

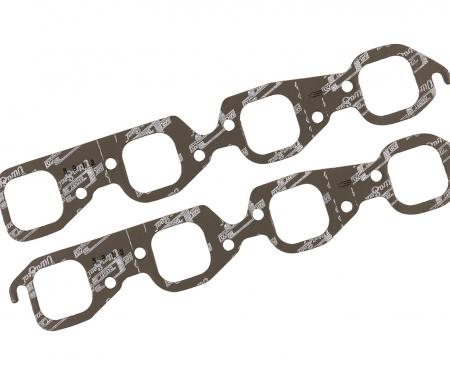

Mr. Gasket Ultra-Seal Header Gaskets 5966

Mr. Gasket Ultra-Seal Header Gaskets 5966
$43.99 ea
NEWARRIVING SOONEstimated Ship Date 12/09/2024 (If Ordered Today)
Model: 3316017
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]
Manufactured from high-temperature steel core/graphite faced exhaust material. Expanded steel core provides stability and maximum torque retention to eliminate gasket failure. Graphite facing provides excellent heat resistance and thermal conductivity to transfer heat away from the cylinder head. Conforms to and seals minor surface irregularities. High recovery material allows header or manifold flange to stay sealed if flange loses clamp-load. Can be trimmed if necessary for modified port applications. For original equipment replacement, high performance street, drag race and oval track use.
Features:
  • Manufactured from high-temperature steel core/graphite faced exhaust material
  • Expanded steel core provides stability and maximum torque retention to eliminate gasket failure
  • Graphite impregnated facing provides excellent heat resistance and thermal conductivity to transfer heat away from the cylinder head
  • Conforms to and seals minor surface irregularities
  • Can be trimmed if necessary for modified port applications
  • For OE replacement, high performance street, drag race and oval track use

Videos:

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years Engine Fitment Notes
Chevrolet Corvette 2005 6.0L / 364 / V8 ULTRA SEAL; EXHAUST GASKET SET;
Chevrolet Corvette 2006 7.0L / 427 / V8
6.0L / 364 / V8
ULTRA SEAL; EXHAUST GASKET SET;
Chevrolet Corvette 2007 7.0L / 427 / V8
6.0L / 364 / V8
ULTRA SEAL; EXHAUST GASKET SET;
Chevrolet Corvette 2008 7.0L / 427 / V8
6.2L / 376 / V8
ULTRA SEAL; EXHAUST GASKET SET;
Chevrolet Corvette 2009 7.0L / 427 / V8
6.2L / 376 / V8
ULTRA SEAL; EXHAUST GASKET SET;
Chevrolet Corvette 2010 7.0L / 427 / V8
6.2L / 376 / V8
ULTRA SEAL; EXHAUST GASKET SET;

Specifications:

Collector Gaskets Included No
Emission Code 5
Engine GM Small Block Gen III/IV (LS Based)
Gasket Line Ultra-Seal
Material Ultra-seal
Part Type Exhaust Manifold Gasket Set
Port Shape Round
Port Size 1.92"
Product Type Header Gaskets
Proposition 65 www.P65Warnings.ca.gov
Thickness .062"
Warranty Limited 90 Day Warranty TX, Limited 90 Day Warranty
Weight 0.3800
