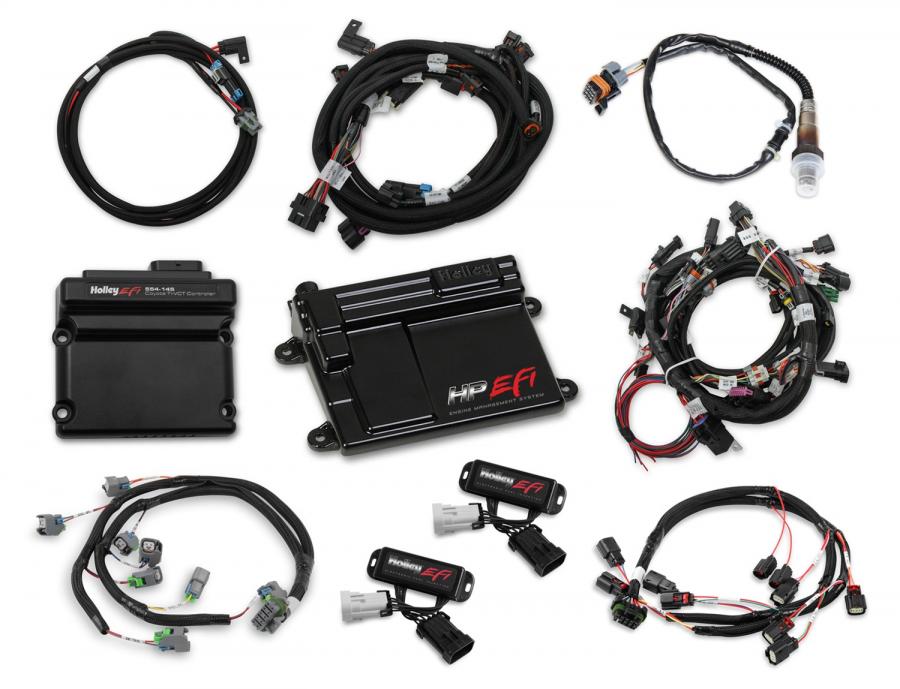

Introducing Coyote Twin Independent Variable Cam Timing Control from Holley EFI! Do you have a coyote crate engine going in your dream car? Is your weekend road race warrior powered by a coyote junkyard engine with locked cams? Unlock the full potential of your high revving power plant with the Holley EFI Plug and Play Coyote Ti-VCT Control Module.
Features:
Now supports 2013-2015.5 Coyote engines

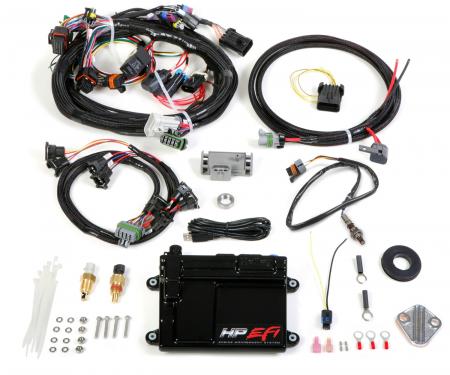

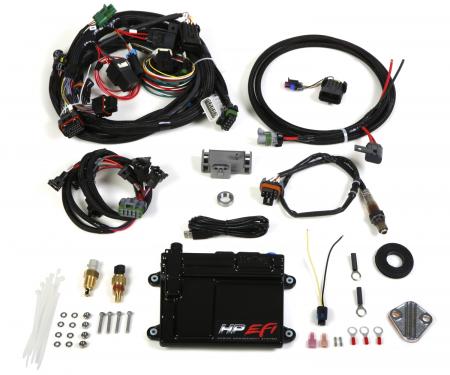

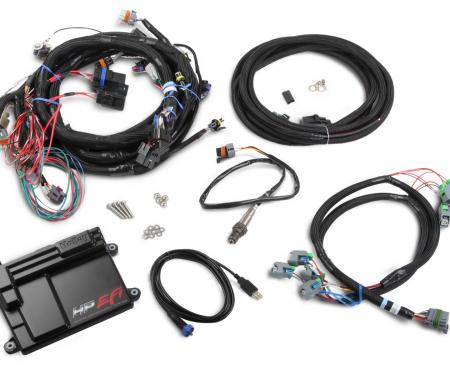

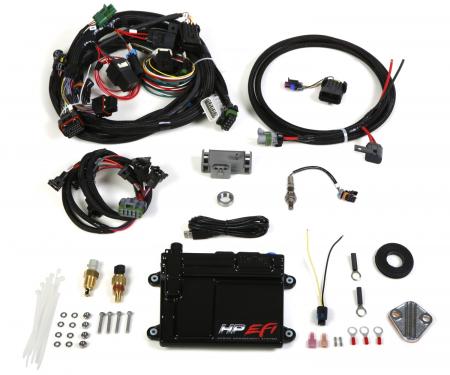

HP EFI kits available
Plug and Play main harness for 2013-2015.5 Coyote engines w/ stock cam shafts using stock coils (558- 110)
Plug and Play main harness for 2013-2015.5 Coyote engines w/ stock cam shafts using Holley EFI coils (558-122)
Compatible with HP or Dominator EFI
Pre-calibrated Ford sensor drop downs in the Holley EFI software
Ti-VCT Cam control down to 400 RPM
Commanded timing matched within 1 degree
User programmable tables enable the end user to fine tune aftermarket Ti-VCT compatible camshafts
4 Built in Diagnostic LEDS make diagnostics easy in the event of a cam or crank sensor failure
Integrated stock cam position tables – eliminate tuning guess work, optimal drive-ability and power right out of the box
Main harnesses come terminated with Ford TPS and IAC connectors, making it easy to convert from a DBW throttle body to a manual throttle body
Installation of an external MAP sensor is required, we recommend part number 538-13 for N/A applications
Main Harnesses includes a Power Tap Connector, as a convenient source for power and grounds when adding additional sensors or actuators
CANBus communication between Coyote Ti-VCT and Holley EFI ECU for high speed data transfer and diagnostics
Designed to be used with a cable driven throttle body.
Installation Notes:
Designed to be used with a cable driven throttle body.
About Holley Performance Products
Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every Monster Energy NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!
