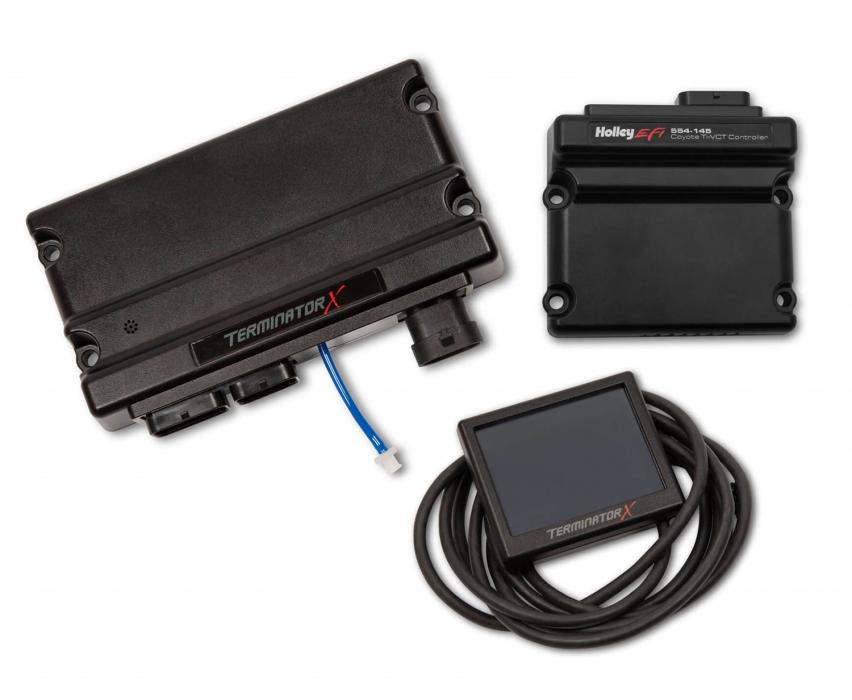

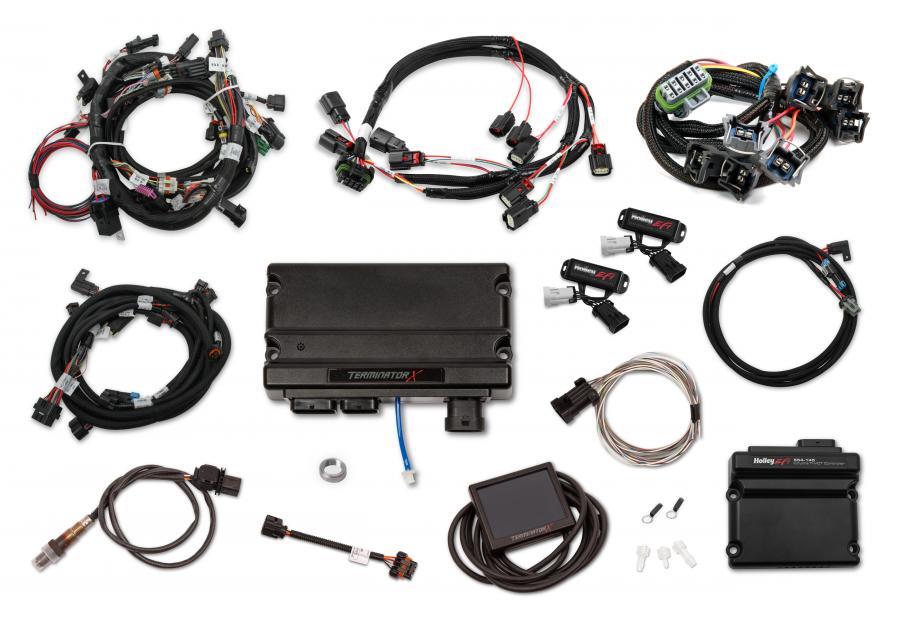

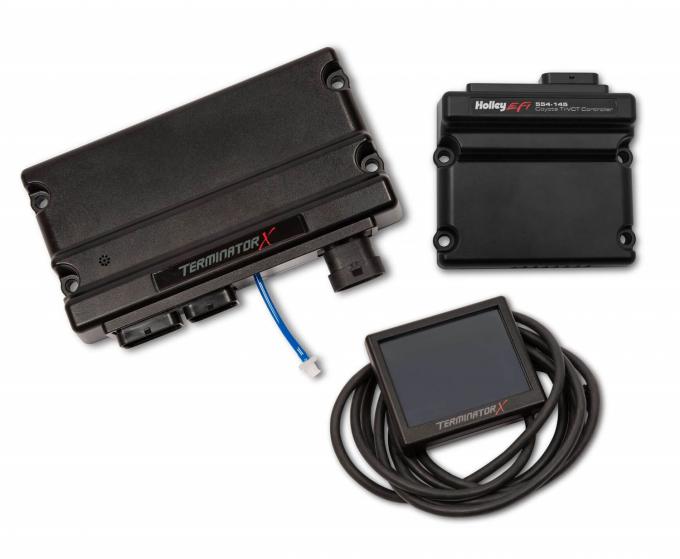

Holley EFI Terminator X, 2013-2015 Ford Coyote w/ Ti-VCT 550-1212

Holley EFI Terminator X, 2013-2015 Ford Coyote w/ Ti-VCT 550-1212
Holley EFI Terminator X, 2013-2015 Ford Coyote w/ Ti-VCT 550-1212Holley EFI Terminator X, 2013-2015 Ford Coyote w/ Ti-VCT 550-1212
$3,527.99 ea
NEWARRIVING SOONEstimated Ship Date 12/20/2024 (If Ordered Today)
Model: 4007437
STANDARD
DELIVERY
STORE PICKUP
[More Info]
Terminator X and X Max Coyote systems supports Ford Coyote platform with Ti-VCT. Terminator X features real-time fuel learn, high impedance injector drivers, integrated 1bar MAP sensor, and 4 programmable inputs and outputs. These are ideal for electric fans, boost control solenoids, progressive nitrous control, and much more. Terminator X ECU comes fully loaded with base maps for common Coyote engine combinations to get you out of the garage and on the road/track fast. The included 3.5" LCD touch screen handheld contains an easy to use calibration wizard as well as tuning and gauge display functions. Included with Terminator X is Holley EFI's industry leading support, easy to use software suite that allows full laptop access/compatibility for advance users. Whether you're building a budget beater or full on race car, Terminator X has the industry leading features and technology you need at a price that won't break the bank.
Features:
  • Plug and play engine control (for Ford 5.0L Coyote with Ti-VCT (Twin Independent Variable Camshaft timing)
  • Plug and Play compatible with Holley EFI accessories – Analog gauges, shift lights, modules, and both 6.86” and 12.3” Pro Dash
  • EV1 or EV6 injector harness included (depending on your injector configuration)
  • High Impedance Injector drivers power Holley EFI and most stock injectors -Injector support chart found in instructions (will not support low impedance injectors)
  • Included Bosch LSU 4.9 wideband O2 sensors for accurate readings and precise tuning control
  • Built in 1bar MAP (manifold absolute pressure) sensor included - For Boosted applications – internal MAP sensor can be disabled and utilize external MAP sensor harness (kit includes a terminated connector for seamless installation)
  • Vacuum hose adapters included - (1/8”, ¼”, and 3/16” sizes)
  • 4 inputs – 12v, Ground, 5v, and frequency for items like pressure sensors, activation triggers, nitrous activation, or trans brake
  • Boost Control – boost vs. time, boost vs. gear, boost vs. RPM, boost vs. speed, and boost safeties
  • Nitrous Control – channels for wet or dry, progressive or non-progressive, rich/lean safeties, and target closed loop AFR (Air/Fuel Ratio)
  • Advanced Tables – ( 4x 1D tables, 1x 1D gear table, 4x 2D table, and 1x 2D gear tables) for nearly unlimited table configuration options
  • On-board diagnostic LEDS - ECU power, engine run, TPS calibration, cam signal, and more! Identify critical engine parameters at a glance
  • 3.5” touchscreen handheld included - Internal data-logging, custom gauge display, and calibration wizard allow quick building bases tunes for any Domestic V8 engine
  • Compact ECU (Engine Control Unit) – At only 7.45” x 4.1” x 1.66” the compact packaging allows mounting virtually anywhere (XMAX ECU = 9.6” x 4.1” x 1.66”). REMINDER: diagnostic LED’s must face up!
  • FREE EFI Tuning software – For compete control of your Terminator X power plant
Terminator X ECU's are designed to be mounted with the LED's facing up.
Installation Notes:
Terminator X ECU's are designed to be mounted with the LED's facing up.

About Holley Performance Products

Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every Monster Energy NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!

Downloads:

Download Name File Size
199r11956.pdf3.11MB
199r11429.pdf591.37KB
199r11432.pdf557.21KB
199r11967.pdf254.87KB

Videos:

Specifications:

Emission Code 3
Injector Connector Jetronic / Minitimer (Bosch)
Part Type Fuel Injection System
Product Type Terminator X Ford MPFI Kit
Proposition 65 www.P65Warnings.ca.gov
