Re-Engineered for even longer lasting life! Now upgraded to include a newly engineered special steel brace with a special plastic support bushing.

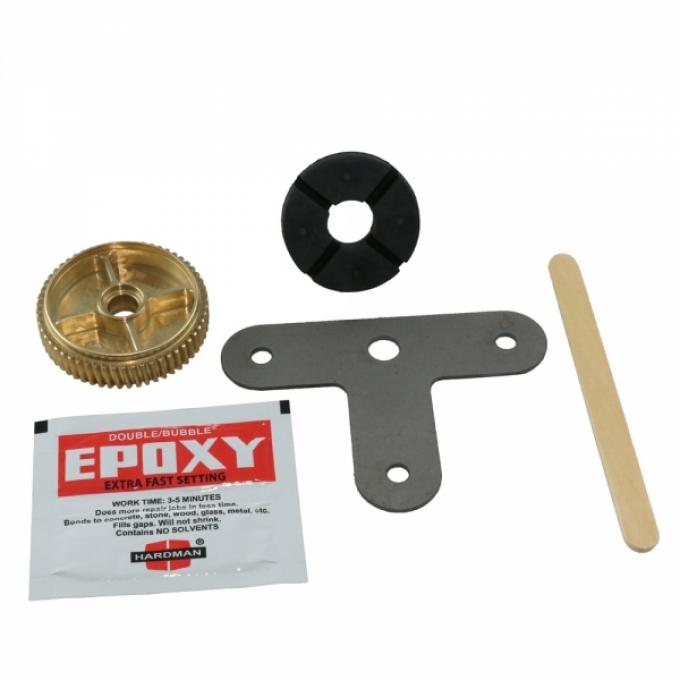

Note About Glue Failure: We have noticed glue joint failures in the late 2000-2004 C5 plastic housing motors. Glue joint failures happen because the plastic that these headlight motors are made of does not take any adhesive well. The glue joint surface is small and once installed it has to take a tremendous force that occurs when the headlight gets full open and full closed and stops abruptly. For the late 2000-2004 C5 headlight gear kits we have added a special stamped steel brace with a special plastic bushing. This brace and bushing do two things. It applies a slight pressure against the side cover helping to eliminate side cover glue failures. But most importantly it adds a new bearing surface to support the shaft thus removing all the pressure of the shaft from the side cover and transferring it to this new brace. Once installed this repair should last the life of the car. The early (97-99 and some early 2000) C5's have an aluminum housing and do not need this special brace. Those headlight motor assemblies are very heavy duty and only require a new gear and rubber bumper.
There are 2 variations of the headlight actuator motor assemblies used on the 1997 and up C5 Corvettes. The 97-99 motor assembly (and some early 2000 models) is all aluminum and has a removable side cover that is held on with 3 machine screws. The gear kit for the 97-99 motor assembly includes a new side cover gasket. The late 2000+ motor assembly is partially plastic (the gear case is plastic - the motor is steel) and it has a glued on plastic side cover. This cover needs to be pried off (broken at the factory glue joint) to replace the worn gear. The cover is easy to pry off and I include a packet of urethane glue to reglue it back on. Included with each replacement gear is a packet of high temerature grease that will not dry out quickly like the grease used by the original manufacturer. Also included:
If you have a 97-99 C5 Corvette there is the possibility that one or both of the early aluminum type headlight motor(s) have been replaced with the newer 2000+ style plastic type headlight motor(s). To ensure you receive the correct kit please check to see if the headlight motor(s) in your 97-99 (and early 2000) C5 are plastic or aluminum. The aluminum housing style is the original equipment used on the 97-99 (and some early 2000) C5 Corvettes. They will have 3 screws holding the side cover one while the 2000+ headlight motor assemblies are plastic and the side cover is glued on. This newer style headlight motor change can occur because the 97-99 style motors are no longer available through GM. If a previous owner or a GM dealer has replaced a headlight motor in a 97-99 they may have installed the newer 2000+ style. A quick check will ensure that you order the correct rebuild kit.
| Quantity | Model | Product Name |
| 1 | 1024906 | Corvette Headlight Motor Bronze Gear Repair Kit, 1997-1999 |
| 1 | 1032999 | Corvette Headlight Motor T-Brace, 2000-2004 |
| Make | Model | Years |
| Chevrolet | Corvette | 1997 - 2004 |
