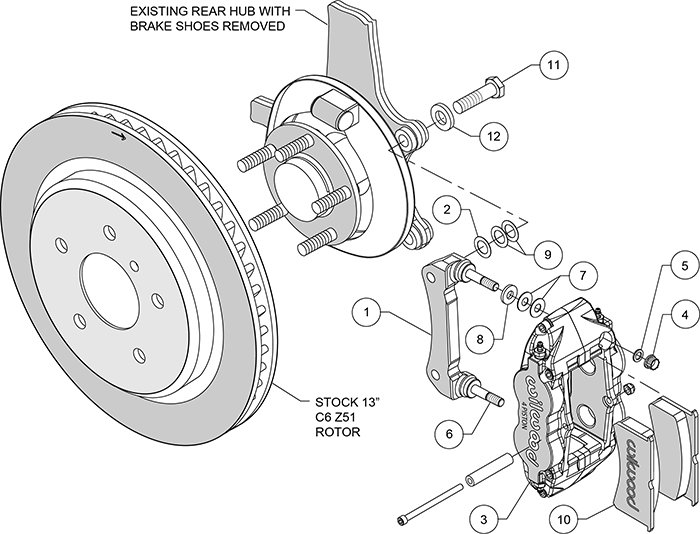

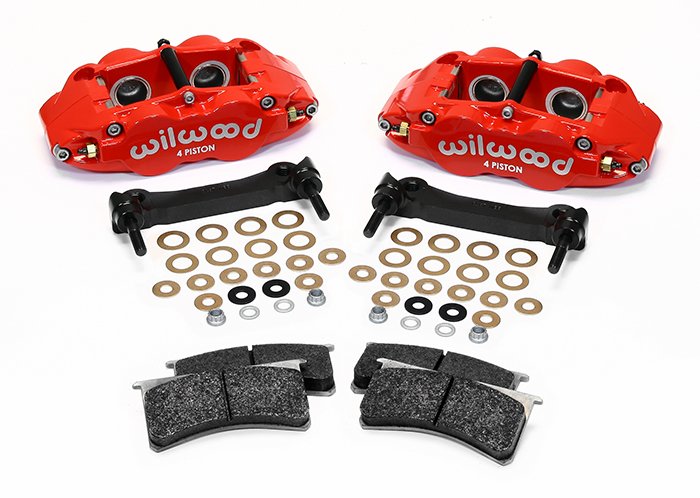

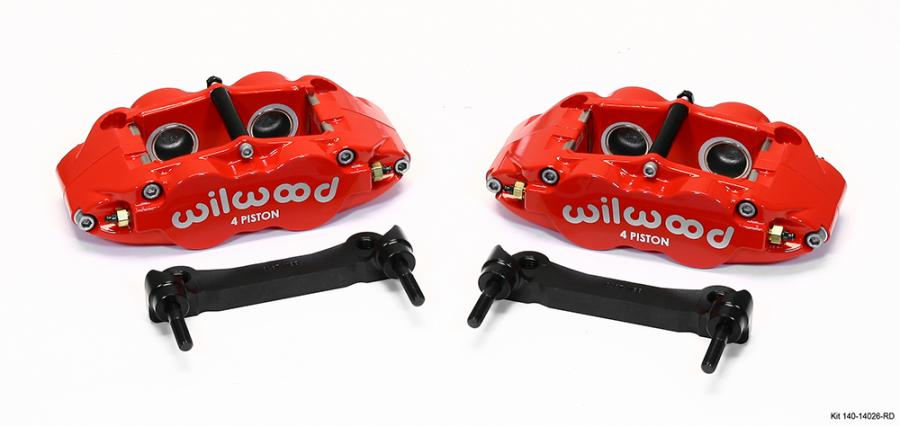

Superlite 4R four piston radial mount rear caliper kits add big brake stopping power and style to any 1997-2013 C5 or C6 Corvette rear suspension. These caliper kits mount in the stock location and replace the OE calipers on all models that have been updated with 13.00” rotors from the 2005-09 C6 Z51 models. Superlite 4R calipers incorporate race proven technology in a high strength, center bridge reinforced forged body design. They provide positive and confident pedal response that is matched to the OE master cylinder output and fully compatible with the ABS system. BP-20 dual-sport compound Smart Pads provide clean and quiet driving on the street, with improved friction and high temperature fade resistance for auto-cross and other sport driving applications.
Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.
With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.
Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.
Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.
| Download Name | File Size |
| ds1084.pdf | 363.99KB |
| Make | Model | Submodel | Years | Fitment Notes |
| Chevrolet | Corvette | 427 | 2013 | KIT,REAR,C5/C6 VETTE 97-13,FNSL4R W/PADS BRACKETS FOR OE C6 Z51,13.00 ROTOR,RED; RTR:13.00-IN DIA, N-A, N/A; CLPR:FORGED NARROW SUPERLITE 4R, 4-PISTON, RED POWDER COAT Use flexline kit 220-8177 for all 1997-04 C5 Use flexline kit 220-9101 for all 2005-13 C6 Requires 2005-09 J55 code Z51 13.00” rear rotor. |
| Chevrolet | Corvette | Base | 2009 - 2013 | KIT,REAR,C5/C6 VETTE 97-13,FNSL4R W/PADS BRACKETS FOR OE C6 Z51,13.00 ROTOR,RED; RTR:13.00-IN DIA, N-A, N/A; CLPR:FORGED NARROW SUPERLITE 4R, 4-PISTON, RED POWDER COAT Use flexline kit 220-8177 for all 1997-04 C5 Use flexline kit 220-9101 for all 2005-13 C6 Requires 2005-09 J55 code Z51 13.00” rear rotor. |
| Chevrolet | Corvette | Base | 2005 - 2008 | KIT,REAR,C5/C6 VETTE 97-13,FNSL4R W/PADS BRACKETS FOR OE C6 Z51,13.00 ROTOR,RED; RTR:13.00-IN DIA, N-A, N/A; CLPR:FORGED NARROW SUPERLITE 4R, 4-PISTON, RED POWDER COAT Use flexline kit 220-8177 for all 1997-04 C5 Use flexline kit 220-9101 for all 2005-13 C6 Requires 2005-09 J55 code Z51 13.00” rear rotor. C-6 - Base |
| Chevrolet | Corvette | Grand Sport | 2010 - 2013 | KIT,REAR,C5/C6 VETTE 97-13,FNSL4R W/PADS BRACKETS FOR OE C6 Z51,13.00 ROTOR,RED; RTR:13.00-IN DIA, N-A, N/A; CLPR:FORGED NARROW SUPERLITE 4R, 4-PISTON, RED POWDER COAT Use flexline kit 220-8177 for all 1997-04 C5 Use flexline kit 220-9101 for all 2005-13 C6 Requires 2005-09 J55 code Z51 13.00” rear rotor. |
| Chevrolet | Corvette | Z06 Carbon | 2011 | KIT,REAR,C5/C6 VETTE 97-13,FNSL4R W/PADS BRACKETS FOR OE C6 Z51,13.00 ROTOR,RED; RTR:13.00-IN DIA, N-A, N/A; CLPR:FORGED NARROW SUPERLITE 4R, 4-PISTON, RED POWDER COAT Use flexline kit 220-8177 for all 1997-04 C5 Use flexline kit 220-9101 for all 2005-13 C6 Requires 2005-09 J55 code Z51 13.00” rear rotor. |
| Chevrolet | Corvette | Z06 | 2009 - 2013 | KIT,REAR,C5/C6 VETTE 97-13,FNSL4R W/PADS BRACKETS FOR OE C6 Z51,13.00 ROTOR,RED; RTR:13.00-IN DIA, N-A, N/A; CLPR:FORGED NARROW SUPERLITE 4R, 4-PISTON, RED POWDER COAT Use flexline kit 220-8177 for all 1997-04 C5 Use flexline kit 220-9101 for all 2005-13 C6 Requires 2005-09 J55 code Z51 13.00” rear rotor. |
| Chevrolet | Corvette | Z06 | 2006 - 2008 | KIT,REAR,C5/C6 VETTE 97-13,FNSL4R W/PADS BRACKETS FOR OE C6 Z51,13.00 ROTOR,RED; RTR:13.00-IN DIA, N-A, N/A; CLPR:FORGED NARROW SUPERLITE 4R, 4-PISTON, RED POWDER COAT Use flexline kit 220-8177 for all 1997-04 C5 Use flexline kit 220-9101 for all 2005-13 C6 Requires 2005-09 J55 code Z51 13.00” rear rotor. C-6-Z06 Models |
| Chevrolet | Corvette | ZR1 | 2009 - 2013 | KIT,REAR,C5/C6 VETTE 97-13,FNSL4R W/PADS BRACKETS FOR OE C6 Z51,13.00 ROTOR,RED; RTR:13.00-IN DIA, N-A, N/A; CLPR:FORGED NARROW SUPERLITE 4R, 4-PISTON, RED POWDER COAT Use flexline kit 220-8177 for all 1997-04 C5 Use flexline kit 220-9101 for all 2005-13 C6 Requires 2005-09 J55 code Z51 13.00” rear rotor. |
| Chevrolet | Corvette | 1997 - 2004 | KIT,REAR,C5/C6 VETTE 97-13,FNSL4R W/PADS BRACKETS FOR OE C6 Z51,13.00 ROTOR,RED; RTR:13.00-IN DIA, N-A, N/A; CLPR:FORGED NARROW SUPERLITE 4R, 4-PISTON, RED POWDER COAT Use flexline kit 220-8177 for all 1997-04 C5 Use flexline kit 220-9101 for all 2005-13 C6 Requires 2005-09 J55 code Z51 13.00” rear rotor. C-5 & Z06 Models |
| Details | |
| Part Type | Disc Brake Caliper / Rotor / Pad Kit |
| Kit Summary | |

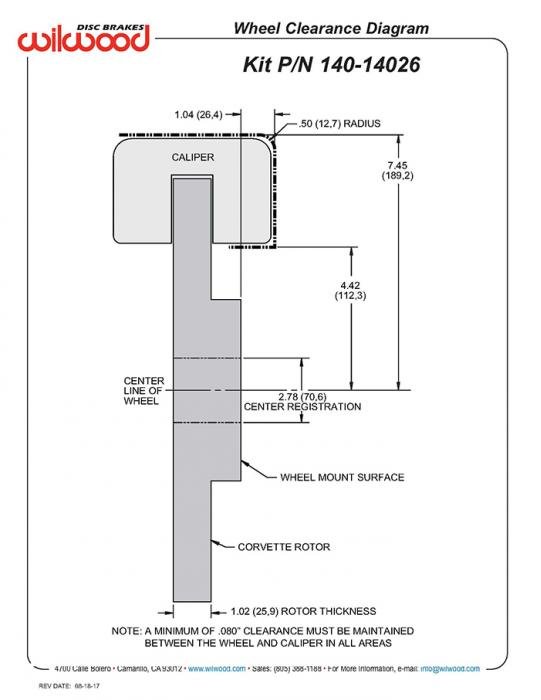

| Axle Offset | 0.00 |
| Caliper Type | 4 - Red Powder Coat |
| Min Wheel Diameter Req'd* | 17 |
| Mount Type | Radial |
| Rear End Axle | OEM |
| Rotor Diameter | 13.00 |
| Parts & Accessories / Caliper Parts | |
| Bleed Screw Kit | 220-0627 |
| Bridge Bolt Kit | 230-7710 |
| CrossOver O-Ring Kit | 130-10540 |
| O-ring Kit | 130-2479 |
| Replacement Piston 1 | 200-7515 |
| Replacement Piston 2 | 200-7515 |
| Wear Plate - Left Hand | 300-6596 |
| Wear Plate - Right Hand | 300-6595 |
| Kit Components & Specs / Calipers | |
| Brake Pad Area (In²) | 8.2 |
| Brake Pad Plate | 7416 |
| Brake Pad Volume (In³) | 3.8 |
| Finish Color | Red Powder Coat |
| Left Hand - Part No | 120-11783-RD |
| Mount Type | Radial |
| Pad Compound | BP-20 |
| Piston 1 Bore (in) | 1.25 |
| Piston 2 Bore (in) | 1.25 |
| Piston Area (In²) | 2.46 |
| Piston Count | 4 |
| Piston Type | Stainless |
| Right Hand - Part No | 120-11783-RD |
| Type | Forged Narrow Superlite 4R |
| Parts & Accessories / Brake Lines | |
| Front Line Kit | 220-8177, 220-9101 |
