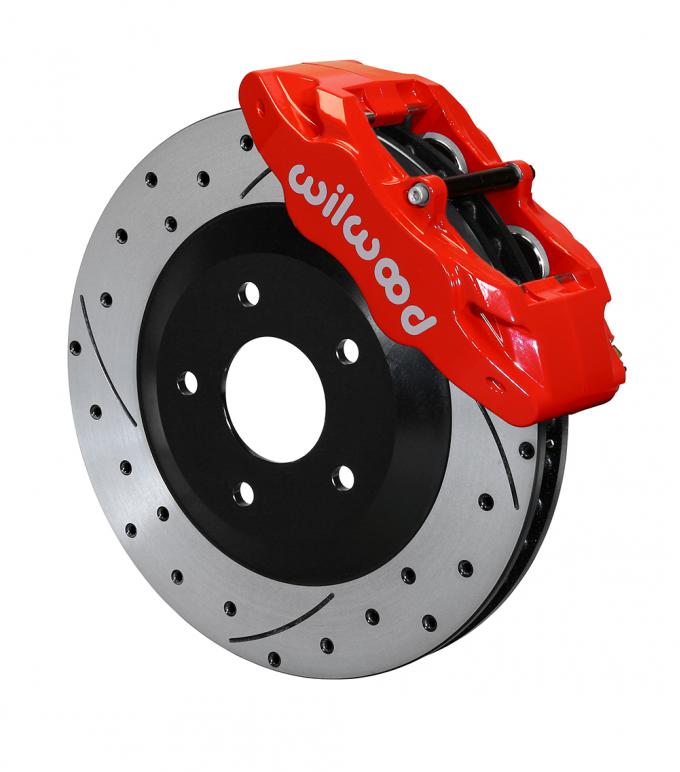

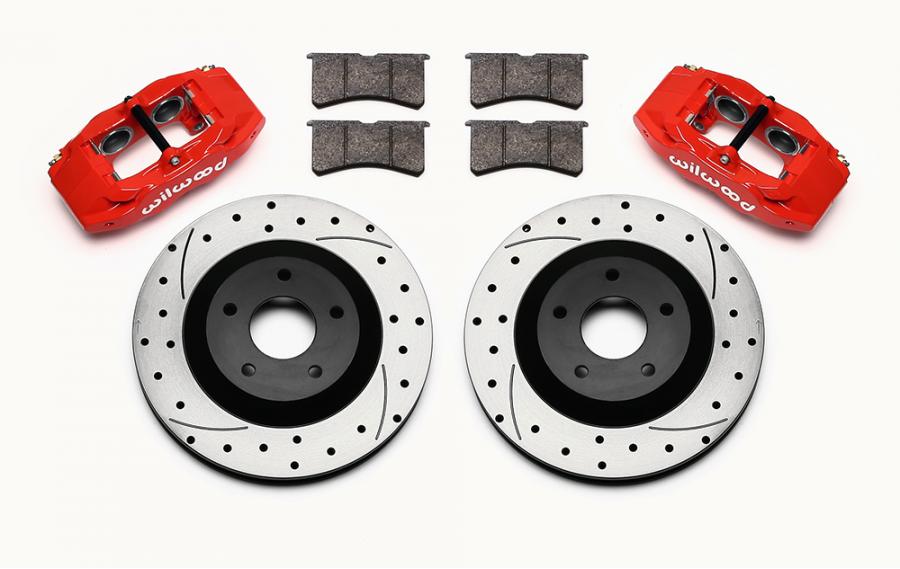

SLC56 front caliper, pad, and rotor kits are engineered as high performance street and custom show replacements for Corvettes and hot rods using Corvette suspension. These kits combine the high-tech styling and superior performance of the SLC56 calipers, 12.8” diameter SRP series dimpled and slotted e-coat rotors, and the positive response, long wear, high fade resistance, and easy clean properties of the BP-10 compound Smart Pads. These kits bolt directly to the front spindle of any model C5 or C6 from 1997-2013, without the need for additional brackets or adapters.
1. Kit fits 97-2004 C5 all, 2005-2013 C6 Base Models w/ 12.80 diameter front rotor.

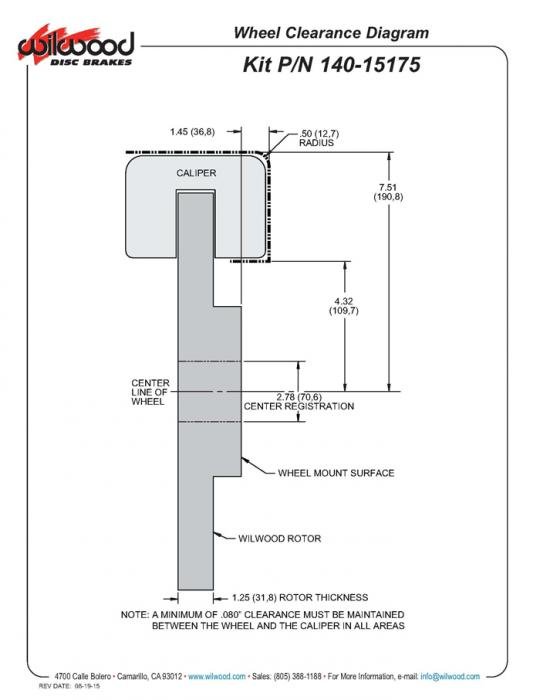

2. SLC56 caliper kits have been checked to clear Z06 model wheels. All other OE and aftermarket wheels should be checked for proper clearance. . Wheel spacers may be required on some applications.
Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.
With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.
Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.
Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.
| Download Name | File Size |
| ds1123.pdf | 359.7KB |
| Make | Model | Submodel | Years | Fitment Notes |
| Chevrolet | Corvette | Base | 2009 - 2013 | KIT,FRONT,VETTE,97-13,SLC5/6,12.80 ALLC5,BASEC6,W/PADS,SRP ROTOR,RED; RTR:12.80-IN DIA, SRP DRILLED ROTOR & HAT, DRILLED & SLOTTED; CLPR:SLC56, 4-PISTON, RED POWDER COAT Kit fits 97-2004 C5 all, 2005-2013 C6 Base Models w/ 12.80 diameter front rotor. SLC56 caliper kits have been checked to clear Z06 model wheels. All other OE and aftermarket wheels should be checked for proper clearance. . Wheel spacers may be required on some applications. |
| Chevrolet | Corvette | Base | 2005 - 2008 | KIT,FRONT,VETTE,97-13,SLC5/6,12.80 ALLC5,BASEC6,W/PADS,SRP ROTOR,RED; RTR:12.80-IN DIA, SRP DRILLED ROTOR & HAT, DRILLED & SLOTTED; CLPR:SLC56, 4-PISTON, RED POWDER COAT Kit fits 97-2004 C5 all, 2005-2013 C6 Base Models w/ 12.80 diameter front rotor. SLC56 caliper kits have been checked to clear Z06 model wheels. All other OE and aftermarket wheels should be checked for proper clearance. . Wheel spacers may be required on some applications. C-6 - Base |
| Chevrolet | Corvette | 1997 - 2004 | KIT,FRONT,VETTE,97-13,SLC5/6,12.80 ALLC5,BASEC6,W/PADS,SRP ROTOR,RED; RTR:12.80-IN DIA, SRP DRILLED ROTOR & HAT, DRILLED & SLOTTED; CLPR:SLC56, 4-PISTON, RED POWDER COAT Kit fits 97-2004 C5 all, 2005-2013 C6 Base Models w/ 12.80 diameter front rotor. SLC56 caliper kits have been checked to clear Z06 model wheels. All other OE and aftermarket wheels should be checked for proper clearance. . Wheel spacers may be required on some applications. C-5 & Z06 Models |
| Details | |
| Part Type | Disc Brake Caliper / Rotor / Pad Kit |

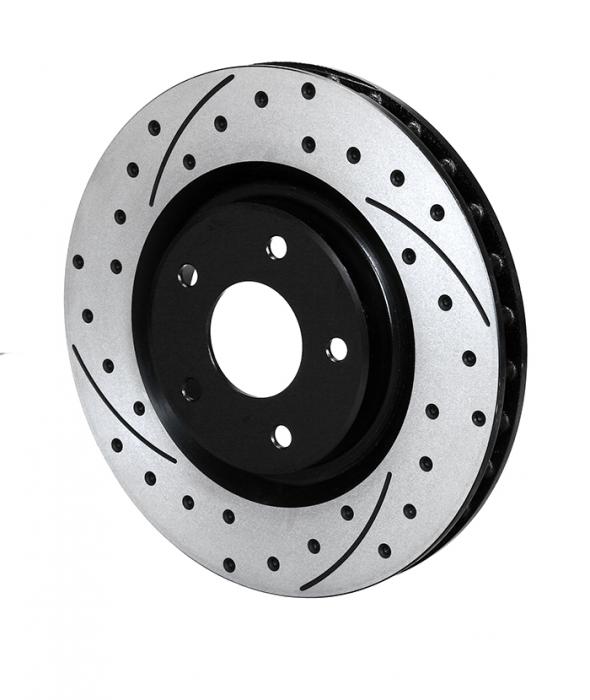

| Kit Components & Specs / Rotors | |
| Bedded | No |
| Design Type | SRP-BLK |
| Dynamically Balanced | No |
| Left Hand - Part No | 160-14043-BK |
| Material | Iron |
| Outside Diameter (in) | 12.80 |
| Right Hand - Part No | 160-14042-BK |
| Style | SRP Dimpled & Slotted |
| Surface Finish | Black Electro Coat |
| Type | SRP Drilled Rotor & Hat |
| Vane Count | Vented |
| Width (in) | 1.25 |
| Parts & Accessories / Caliper Parts | |
| Bleed Screw Kit | 220-0627 |
| CrossOver O-Ring Kit | 130-10540 |
| O-ring Kit | 130-4346 |
| Replacement Piston 1 | 200-7520 |
| Replacement Piston 2 | 200-7520 |
| Wear Plate - Left Hand | 300-6595 |
| Wear Plate - Right Hand | 300-6596 |

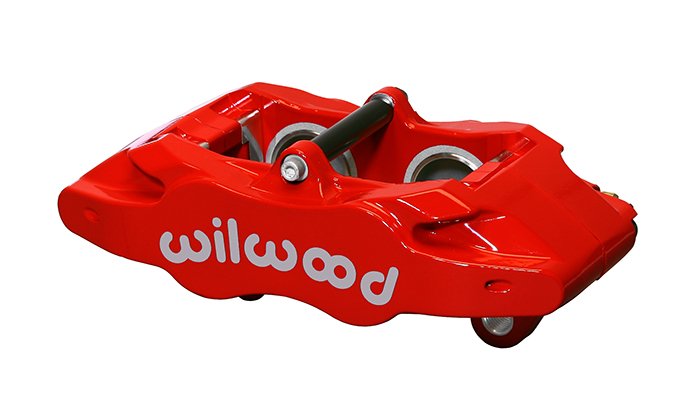

| Kit Components & Specs / Calipers | |
| Brake Pad Area (In²) | 8.2 |
| Brake Pad Plate | 7416 |
| Brake Pad Volume (In³) | 3.8 |
| Finish Color | Red Powder Coat |
| Left Hand - Part No | 120-13915-RD |
| Mount Type | Lug |
| Pad Compound | BP-10 |
| Piston 1 Bore (in) | 1.62 |
| Piston 2 Bore (in) | 1.62 |
| Piston Area (In²) | 4.12 |
| Piston Count | 4 |
| Piston Type | Stainless |
| Right Hand - Part No | 120-13915-RD |
| Type | SLC56 |
| Caliper Type | 4 - Red Powder Coat |
| Min Wheel Diameter Req'd* | 17 |
| Mount Type | Lug |
| Rotor Diameter | 12.80 |
| Spindle Type | Factory Disc Spindle |
| Parts & Accessories / *Brake Lines Needed | |
| Front Line Kit | 220-8021, 220-15194 |
